Low-Power to High-Power Fiber Laser Upgrade

Retrofit Engineering

Low-Power to High-Power Fiber Laser Upgrade

Increase laser power only after validating the machine frame, motion, cutting head, chiller, extraction, gas, electrical supply and control architecture.

Get a QuoteWhatsApp

07 / 07

Retrofit Scope

Increase laser power only after validating the machine frame, motion, cutting head, chiller, extraction, gas, electrical supply and control architecture.

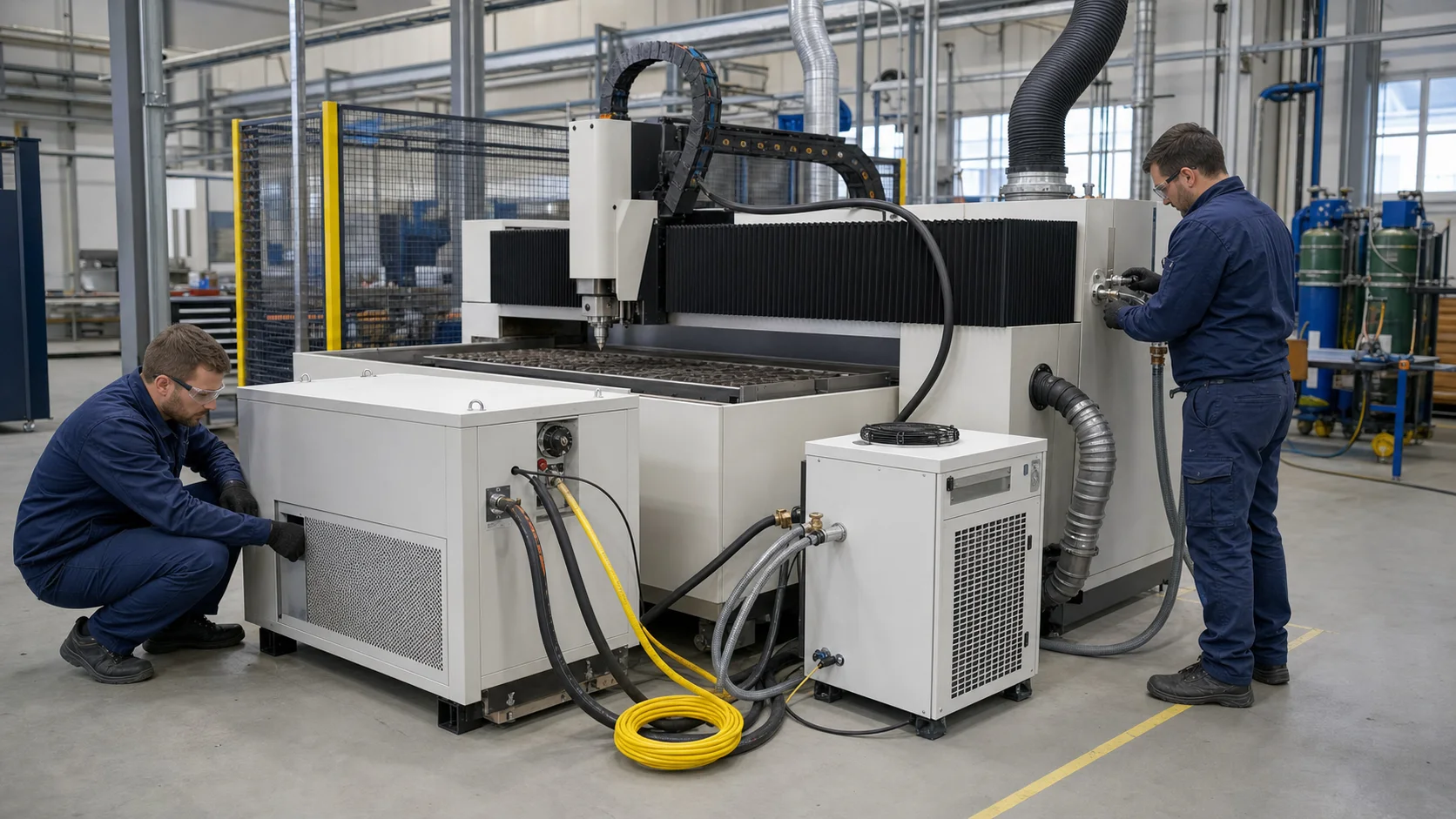

High-power fiber laser source, cutting head and chiller integration on a cutting machine
Low-to-high-power fiber upgrade: matched source, head, cooling and utilities.

High-power readiness diagnosis

A higher-power source is evaluated as a machine system, not a source swap. The survey checks frame stiffness, motion condition, cutting-head rating, chiller duty, extraction, gas delivery, electrical supply and control capacity against the target materials.

  • Inspect the frame, gantry, racks and bearings for load and acceleration condition.
  • Verify cutting head, fiber cable, chiller and process gas ratings for target power.
  • Measure electrical supply, extraction performance and safety enclosure condition.

High-power system architecture

The upgrade architecture combines a suitably rated fiber source with compatible head, chiller, gas, extraction and electrical components. Control and process parameters are selected after the machine's motion and safety limits are defined, rather than by copying another power level.

  • Specify source, head, cooling and fiber delivery as a matched rated set.
  • Upgrade electrical protection, gas regulation and extraction where the survey shows a limit.
  • Configure the control platform and process library for the approved power range.

Commissioning and production acceptance

Commissioning increases power in controlled steps while monitoring cut stability, thermal behavior and safety response. Acceptance is based on specified materials and thicknesses, repeatable edge quality and safe operating routines at the agreed production power.

  • Confirm coolant flow, source alarms, enclosure safety and extraction before cutting.
  • Develop pierce and cutting recipes progressively from low to target power.
  • Run repeated production samples and record quality, throughput and operator procedures.

Typical Customer Challenges

01

Higher laser power can overload the existing frame, head, chiller, extraction, gas and electrical systems.

02

Rising maintenance cost and unpredictable downtime

03

Need for higher power, easier operation or current process functions

Retrofit Engineering

Compatibility comes before configuration

Every project requires a machine-specific assessment. Final hardware, software and achievable performance depend on the existing mechanical accuracy, drive system, I/O, electrical cabinet, safety circuit and selected laser power.

Assessment Checklist

  • Target power, material and machine capability review
  • Laser source, head, chiller, electrical, gas and extraction upgrade
  • Laser source, cutting head and chiller
  • Electrical drawings and safety circuit
  • Target materials, thickness and laser power

Project Deliverables

  • Machine compatibility report
  • Retrofit architecture and bill of materials
  • Electrical and I/O integration plan
  • Control platform selection and high-power process commissioning
  • Operator training and handover records
  • Remote support after commissioning

Retrofit Engineering

From machine survey to production handover

  1. 01

    Machine survey

    Collect model, year, controller, source, drives, drawings and fault history.

  2. 02

    Compatibility review

    Verify mechanics, motion, I/O, safety, utilities and target laser power.

  3. 03

    Retrofit engineering

    Define control, optics, electrical, cooling, gas and safety integration.

  4. 04

    Installation & commissioning

    Install hardware, map I/O, tune motion and complete process parameter setup.

  5. 05

    Training & support

    Validate cutting samples, train operators, document the final configuration and provide post-commissioning support.

Retrofit Engineering

Selecting the right Bochu control platform

CypCut is a leading Chinese sheet-metal laser cutting software platform. Depending on power, motion architecture and process requirements, a project may use CypCut, CypCutPro or an EtherCAT-based FSCUT8000/HypCut solution.

View Service
CypCutSheet cuttingStandard motion
CypCutProAdvanced sheet cuttingExpanded process control
FSCUT8000 / HypCutHigh-power cuttingEtherCAT architecture

Technical References

FSCUT8000 Installation & User ManualCypCut V6.5 User Manual

Related Services

TRUMPF CO2 Laser to Fiber Laser Retrofit 01

TRUMPF CO2 to Fiber Laser

Replace the legacy CO2 beam source and beam delivery with a fiber laser architecture while retaining suitable mechanical assets.

View Service
TRUMPF Laser Cutting Control to CypCut Retrofit 02

TRUMPF Control to CypCut

Modernize an aging TRUMPF control architecture with a Bochu cutting platform after drive, I/O and safety compatibility review.

View Service
Beckhoff Laser Cutting Control to CypCut Retrofit 03

Beckhoff Control to CypCut

Re-engineer Beckhoff-based control and motion functions around a suitable Bochu platform with machine-specific EtherCAT and I/O planning.

View Service

Request Retrofit Assessment

Send the machine brand, model, year, current controller, laser source, target power and recent machine photos. We will review technical compatibility before recommending a retrofit scope.

Compatibility notice: TRUMPF, Beckhoff, PA8000, Fagor, CypCut, FSCUT and HypCut are trademarks of their respective owners. Arkmex retrofit services are independent engineering services and do not imply authorization or affiliation. Final scope is confirmed only after machine assessment.
