Laser Cutting Machine Technical Support

Get practical technical consultation, remote diagnostics, fault analysis, cutting-parameter guidance and maintenance support for laser cutting machines.

Get a QuoteWhatsApp

08 / 08

Retrofit Scope

Get practical technical consultation, remote diagnostics, fault analysis, cutting-parameter guidance and maintenance support for laser cutting machines.

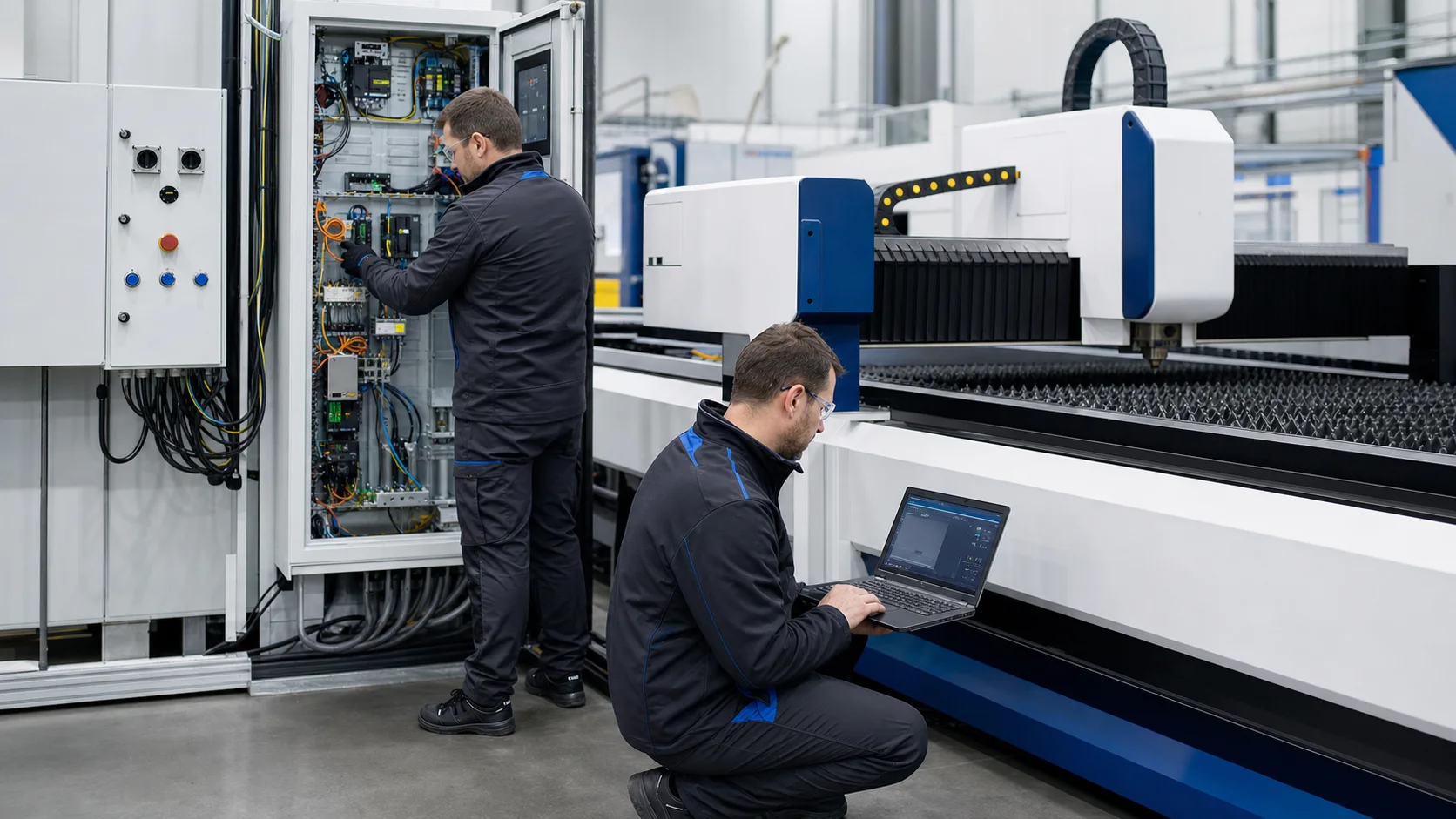

Laser cutting technician diagnosing an electrical cabinet while reviewing machine status on a laptop
Technical support for laser cutting machines: remote diagnosis, parameter guidance and maintenance follow-up.

Remote support readiness diagnosis

A structured remote session starts with the machine model, controller, current symptoms, alarm history, recent parameter changes and clear photos or video of the relevant equipment. This lets the technician separate a process-setting issue from a control, motion, source or auxiliary-system fault before recommending the next safe check.

  • Collect the machine model, controller type, alarm codes and a concise description of the production symptom.
  • Review photos or video of the control screen, cutting head, gas train, chiller and affected machine area.
  • Confirm recent software, parameter, material or maintenance changes before guided troubleshooting begins.

Guided diagnostic workflow

Technical support follows a practical sequence: review available evidence, confirm the safety condition, isolate the affected subsystem and then provide machine-specific checks. Recommendations focus on diagnostic steps, parameter review and maintenance guidance; hardware replacement is not assumed without evidence from the machine.

  • Check safe reset, interlock, power and utility status before any machine intervention.
  • Review control parameters, process recipes and alarm conditions against the reported result.
  • Define the next observation, measurement or on-site check required to confirm the cause.

Support closure and follow-up

A support case is closed only after the customer confirms the machine response, cutting result or next required action. The final guidance records the confirmed condition, any adjusted settings and maintenance points so operators have a clear reference for follow-up production and future consultation.

  • Verify the observed alarm, motion response or cutting sample after the guided steps.
  • Document confirmed findings, safe parameter changes and any unresolved on-site inspection needs.
  • Provide maintenance reminders and follow-up support guidance for the production team.

Typical Customer Challenges

01

Unresolved alarms, inconsistent cutting results or unfamiliar control settings can extend downtime without structured technical diagnosis.

02

Rising maintenance cost and unpredictable downtime

03

Need for higher power, easier operation or current process functions

Retrofit Engineering

Compatibility comes before configuration

Every project requires a machine-specific assessment. Final hardware, software and achievable performance depend on the existing mechanical accuracy, drive system, I/O, electrical cabinet, safety circuit and selected laser power.

A thorough engineering review confirms the retrofit solution is compatible, integrated correctly and sized around the real machine condition and production target.

Mechanical & electrical condition
Machine base, cabinet condition and safety readiness
Control, drives & fieldbus
Existing controller, drives, I/O and motion network
Target materials & laser power
Material, thickness, process target and proposed power

Assessment outcome

The review turns machine evidence into a clear engineering decision.

  • Feasibility confirmedIdentify the constraints that affect a retrofit path.
  • Scope definedSet the required controls, interfaces and safety work.
  • Commissioning plannedPrepare installation, parameter setup and handover.

Engineering review at a glance

Assessment Checklist

  • Remote fault diagnosis and technical consultationMachine base, cabinet condition and safety readiness
  • Machine status, alarm history and control-parameter reviewExisting controller, drives, I/O and motion network
  • Laser source, cutting head and chillerMaterial, thickness, process target and proposed power
  • Electrical drawings and safety circuitMachine base, cabinet condition and safety readiness
  • Target materials, thickness and laser powerMaterial, thickness, process target and proposed power

Project Deliverables

  • Machine compatibility reportFindings and retrofit recommendations
  • Retrofit architecture and bill of materialsScope and component list
  • Electrical and I/O integration planWiring, signals and interfaces
  • Maintenance guidance, cutting-process suggestions and follow-up supportSetup and optimization
  • Operator training and handover recordsManuals and documentation
  • Remote support after commissioningOngoing technical assistance

Retrofit Engineering

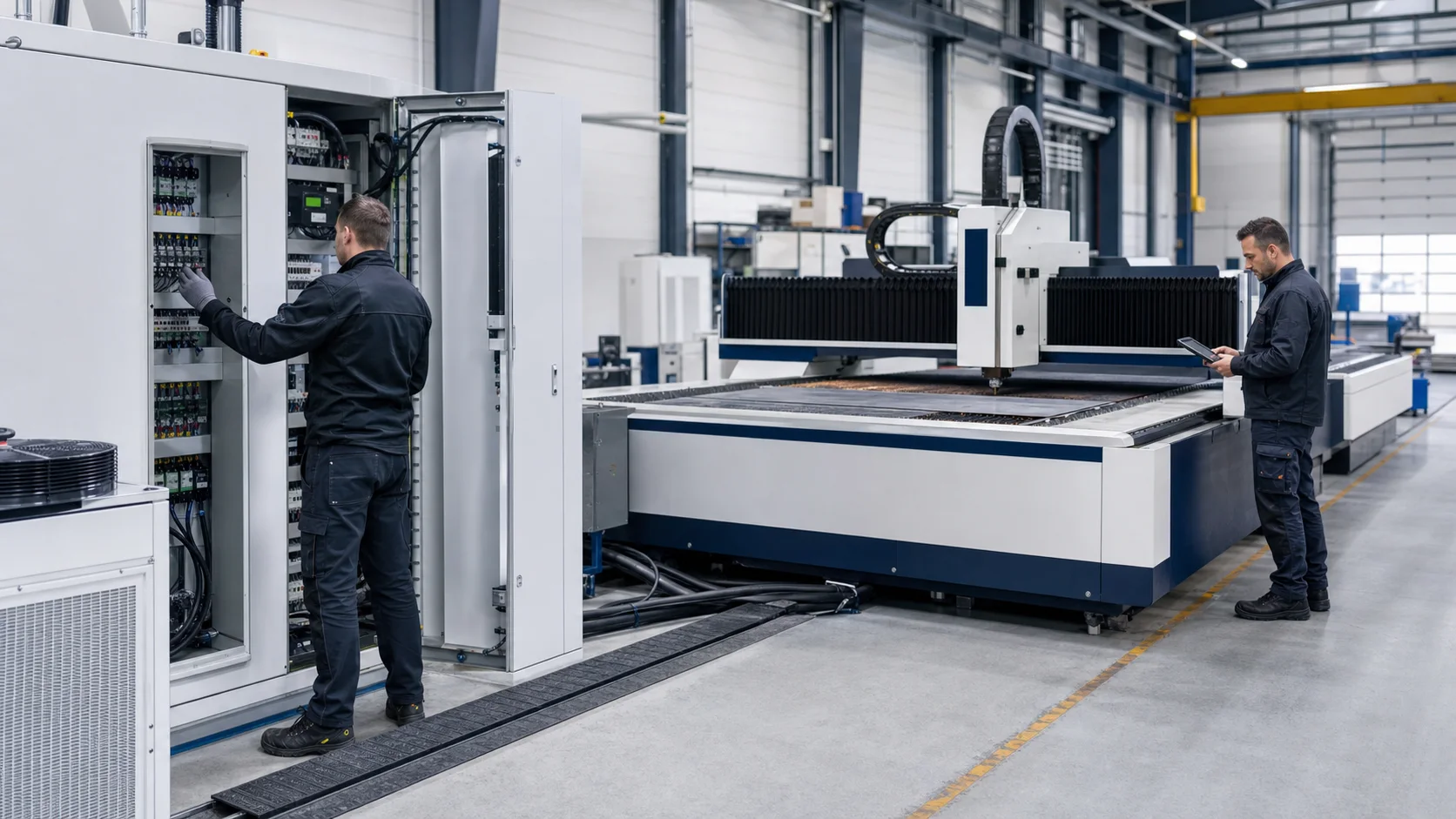

From machine survey to production handover

From machine survey to production handover
  1. 01

    Machine survey

    Collect model, year, controller, source, drives, drawings and fault history.

  2. 02

    Compatibility review

    Verify mechanics, motion, I/O, safety, utilities and target laser power.

  3. 03

    Retrofit engineering

    Define control, optics, electrical, cooling, gas and safety integration.

  4. 04

    Installation & commissioning

    Install hardware, map I/O, tune motion and complete process parameter setup.

  5. 05

    Training & support

    Validate cutting samples, train operators, document the final configuration and provide post-commissioning support.

Retrofit Engineering

Selecting the right Bochu control platform

CypCut is a leading Chinese sheet-metal laser cutting software platform. Depending on power, motion architecture and process requirements, a project may use CypCut, CypCutPro or an EtherCAT-based FSCUT8000/HypCut solution.

Match the control platform to the installed laser power, motion architecture, I/O scope and the process control your production requires.

Installed power
Laser source and planned duty cycle
Motion & fieldbus
Existing drives, pulse control or EtherCAT readiness
Required process control
Everyday production, advanced functions or high-power coordination
Engineering fit check

Share your machine model, installed controller and production target. We review the practical control path before any retrofit scope is confirmed.

View Service

Technical References

CypCut V6.5 User ManualFSCUT8000 Installation & User Manual

Related Services

TRUMPF CO2 Laser to Fiber Laser Retrofit 01

TRUMPF CO2 to Fiber Laser

Replace the legacy CO2 beam source and beam delivery with a fiber laser architecture while retaining suitable mechanical assets.

View Service
TRUMPF Laser Cutting Control to CypCut Retrofit 02

TRUMPF Control to CypCut

Modernize an aging TRUMPF control architecture with a Bochu cutting platform after drive, I/O and safety compatibility review.

View Service
Beckhoff Laser Cutting Control to CypCut Retrofit 03

Beckhoff Control to CypCut

Re-engineer Beckhoff-based control and motion functions around a suitable Bochu platform with machine-specific EtherCAT and I/O planning.

View Service

Request Retrofit Assessment

Send the machine brand, model, year, current controller, laser source, target power and recent machine photos. We will review technical compatibility before recommending a retrofit scope.
